All Al Bunayan Factory products are manufactured in full compliance with the Saudi Building Code (SBC) and approved engineering standards. Structural properties, concrete type, reinforcement, treatment, and final insulation for each product are determined according to the client’s requirements and intended use, with all execution plans approved by the designated consulting engineer.

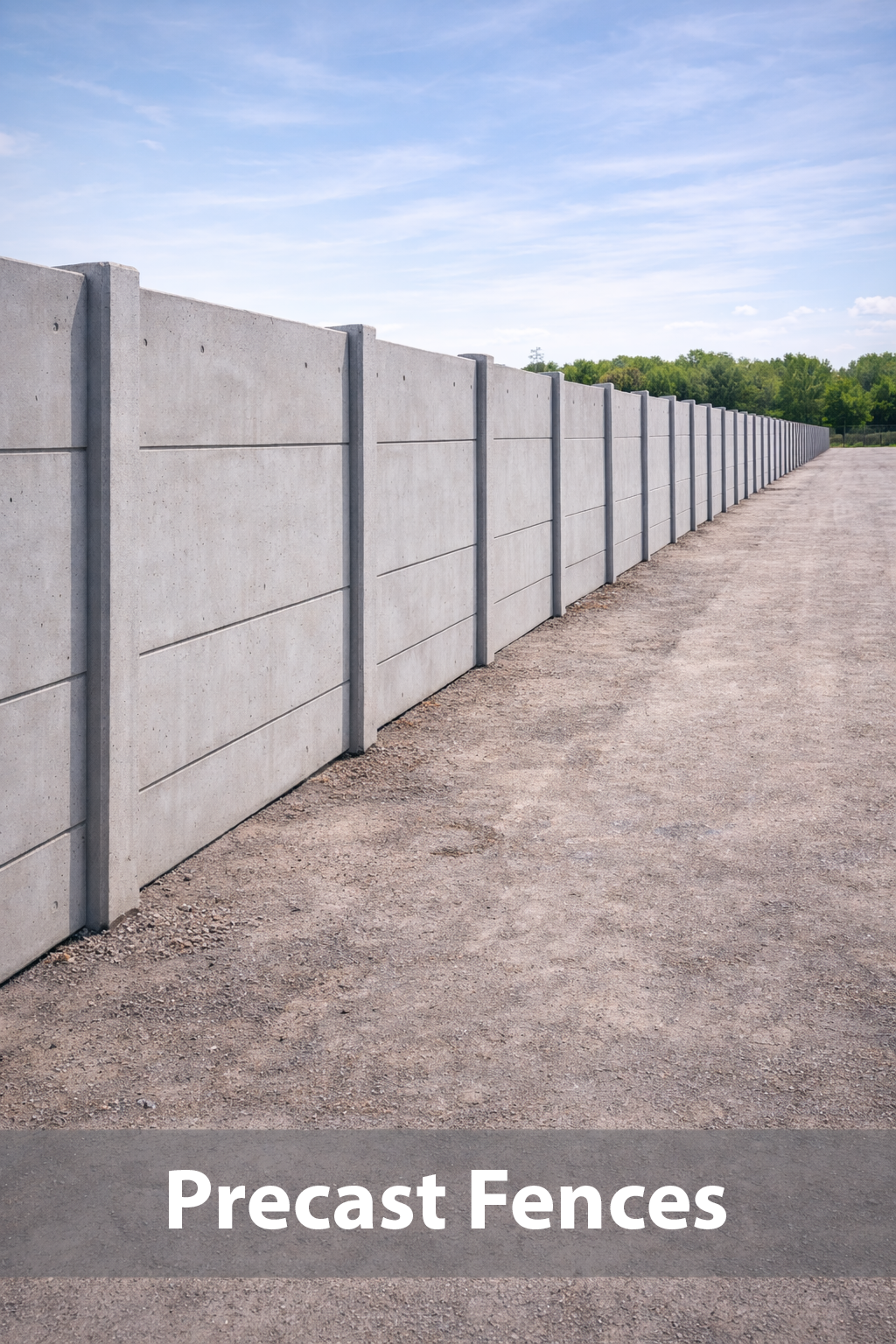

Precast Concrete Fences
Description:
Precast concrete fences designed according to structural and engineering standards for residential, commercial, industrial, and governmental projects. These fences provide high durability, resistance to lateral loads, and environmental factors, with versatile installation systems to meet both structural and aesthetic project requirements.
Technical Specifications:
- Thicknesses and dimensions: As per approved drawings.
- Concrete type: High-strength structural concrete compliant with applicable codes.
- Reinforcement: In accordance with structural codes and approved drawings.
- Finishes: Smooth – Rough – Architectural.
- Additional options: Thermal insulation, door and window openings.
Installation Systems and Structural Details:
-
Three-Element System (Base + Column + Panel):
- Consists of a concrete base, vertical columns, and a panel between the columns.
- All elements are integrated as precast units, providing structural stability and bearing vertical and lateral loads without the need for mechanical connections.
-
Two-Element System (Base + Panel):
- Contains only a supporting base beneath the panel.
- Panels interlock without the need for columns.
- Suitable for medium heights, simplifies installation, and reduces cost.
-
Continuous Base Wall System:
- Concrete base extending along the full length of the wall.
- Provides additional support against lateral pressure and reactions for long walls.
- Ideal for industrial areas or extended fences with high load requirements.
-
Integrated Base-Wall Precast System:
- The base and wall are manufactured as a single precast unit in the factory.
- Ensures complete structural cohesion between the base and wall, preventing any relative movement under vertical and lateral loads.
- Offers high shear strength and maximum durability, suitable for tall fences or harsh environments.
- Used in projects requiring wind and lateral load resistance while ensuring fast on-site installation.
- Residential and decorative fences.
- High-strength industrial barriers.
- Security and protection walls.
- Municipal fencing for roads and public facilities.
- Concrete: High-strength structural concrete, compliant with Saudi Building Code (SBC).
- Reinforcement: Stainless steel, per execution drawings.
- Load Resistance: Designed for vertical, lateral, and wind loads according to structural design.
- Finishes: Smooth, rough, or architectural, per design.
- Service Life: Long, with minimal maintenance.
- Ease of Installation: Adaptable to site requirements.
- Residential, commercial, and mixed-use projects.
- Industrial and governmental facilities.
- Roads, parks, and public amenities.
